Nuomi Chemical, a China High Temperature Epoxy Adhesive manufacturer, occupies
a leading position in the epoxy resin industry, and its advantages of industry
and trade integration provide customers with customized personalized services.

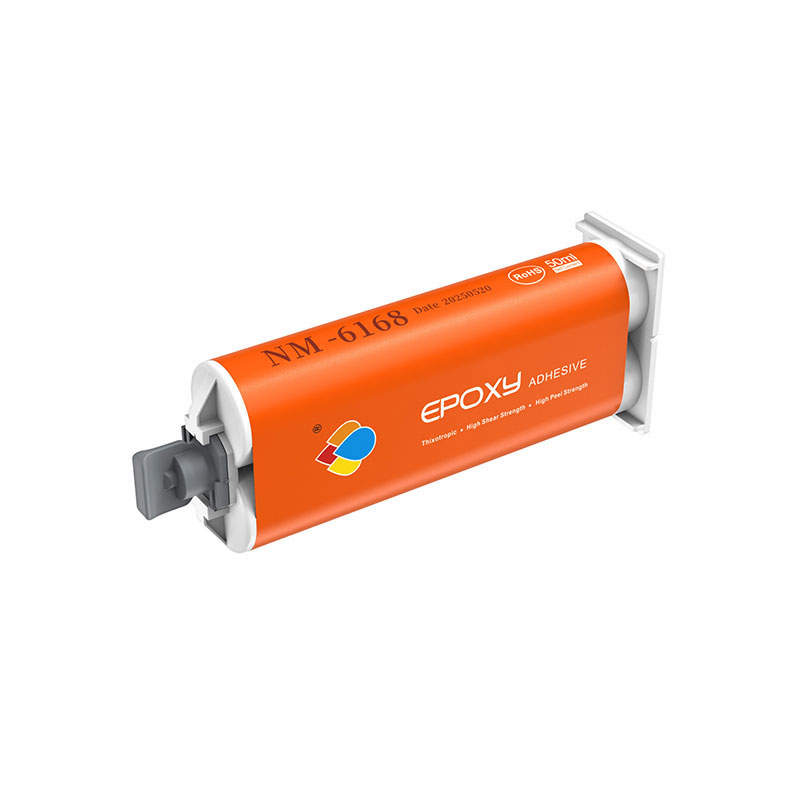

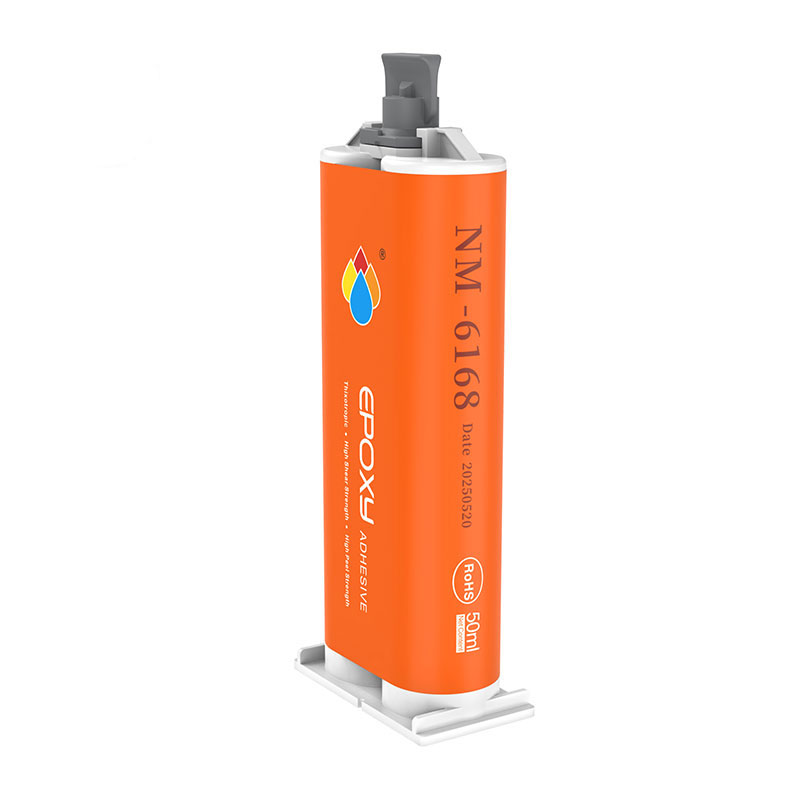

NM-6168 is a two-component tough High Temperature Epoxy Adhesive. After
curing, it exhibits excellent high-temperature resistance, long-term
high-temperature resistance of 250℃ and short-term resistance to 350℃. It has
the characteristics of strong acid and alkali corrosion, high viscosity and
long operating time. The excellent electrical insulation performance,
anti-aging performance and chemical solvent resistance of NM-6168 High
Temperature Epoxy Adhesive make it suitable for high-demand industrial
environments, especially for color TV high-voltage packages, medical
equipment, aluminum-based circuit board hole wall insulation, oil drilling,
mining equipment, wear-resistant ceramic sheets, high-current transformers,
induction cooker bottom plates, filters, micro motors, cable joints, etc.
Bonding and potting.
The packaging specification of NM-6168 High Temperature Epoxy Adhesive is 50ML
per group. The product packaging specifications can be customized according to
different customer application scenarios,too.
| Item | A/B Ratio | Appearance | Tensile shear strength | Usable Time | Curing Time |
| NM-6168 | 1:1 |
Glue A is white Glue B is yellow Beige after curing |
≥25(MPa) | 90 minutes | Normal temperature 25℃ 24-48 hours |
| Hardness（Shore D）≥85 | Water absorption（25℃ % 24 Hours）<0.15 |
| Compressive strength（kg/mm2） ≥50 | Shear strength (steel/steel) (kg/mm2) ≥25 |
| Tensile Strength (Steel/Steel) (kg/mm2) ≥25 | Dielectric constant (1KHZ) 3.8~4.2 |
| Volume resistance (25℃ Ohm-cm) ≥1.35 ×1015 | Surface resistance (25℃ Ohm) ≥1.2×1014 |
| Withstand voltage (25℃ Kv/mm) ≥16~18 | Glass transition temperature 180℃ |
| Viscosity of glue A is 150000cps and glue B is 50000cps |
Temperature range Long-term high temperature resistance: 250℃, short-term high temperature resistance: 350℃ |
|
Curing temperature and time 120℃/60min; 24 hours at room temperature (25℃) |
Relationship between temperature and strength Normal temperature 25℃: ≥25 Mpa; 100℃: ≥20 Mpa; 150℃: ≥15 Mpa; 200℃: ≥10 Mpa |
How to use: Before using NM-6168 High Temperature Epoxy Adhesive, make sure that the parts to be bonded and sealed need to be kept dry and clean; take the amount according to the ratio, A and B agents will start to solidify after mixing, the viscosity will rise rapidly, and heat will be released. After mixing, it is necessary to fully stir to ensure the curing effect; after stirring evenly, please inject glue in time, and try to use up the mixed glue within the usable time. During the curing process, please clean the containers and utensils used in time to prevent the glue from solidifying on the utensils and items.
Note: This product is very thick.It is recommended to place the product in a 60°C oven for 10-20 minutes before use to reduce viscosity and increase fluidity. The product solidifies quickly after heating. Please try to reduce the amount of glue you prepare at one time! Try to use up the mixed glue in a short time; a very small number of people will have mild skin allergies and mild itching and pain after long-term contact with the glue. It is recommended to wear protective gloves when using it. If it accidentally sticks to the skin, please rinse it repeatedly with clean water immediately. Before using it in large quantities, please try it in a small amount first to master the use skills of the product to avoid mistakes.
NM-6168 High Temperature Epoxy Adhesive should be stored in a cool, dry place and sealed. The shelf life is six months. If it passes the test after the expiration date, it can continue to be used.
