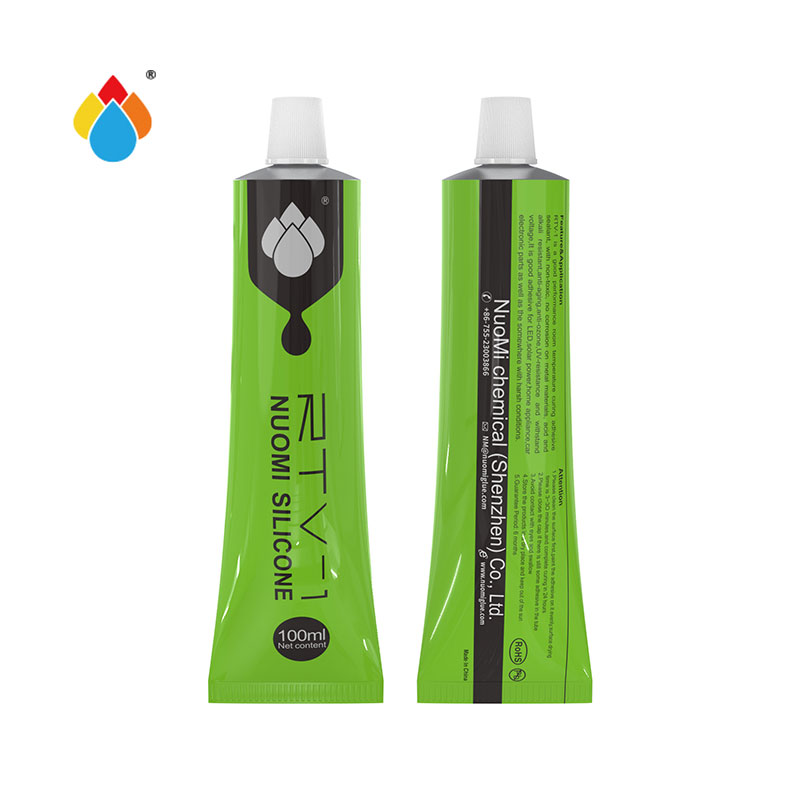

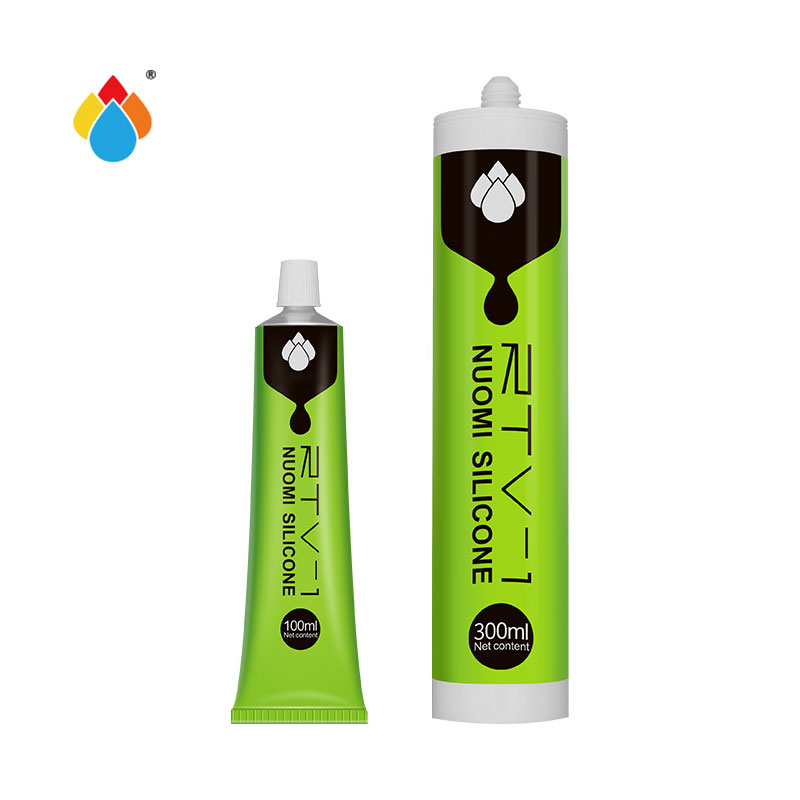

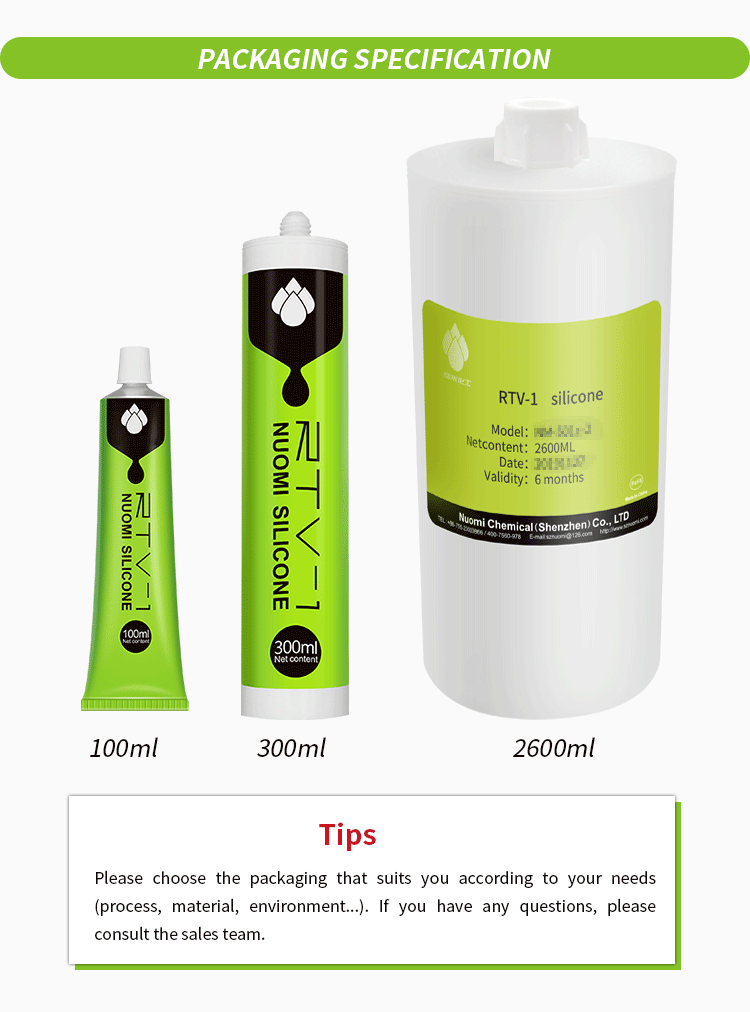

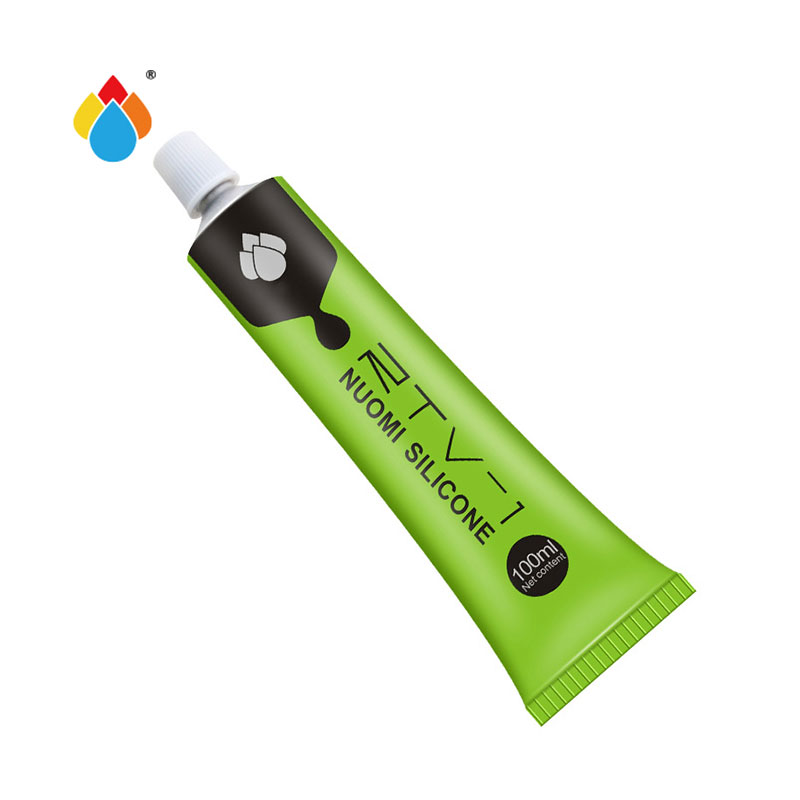

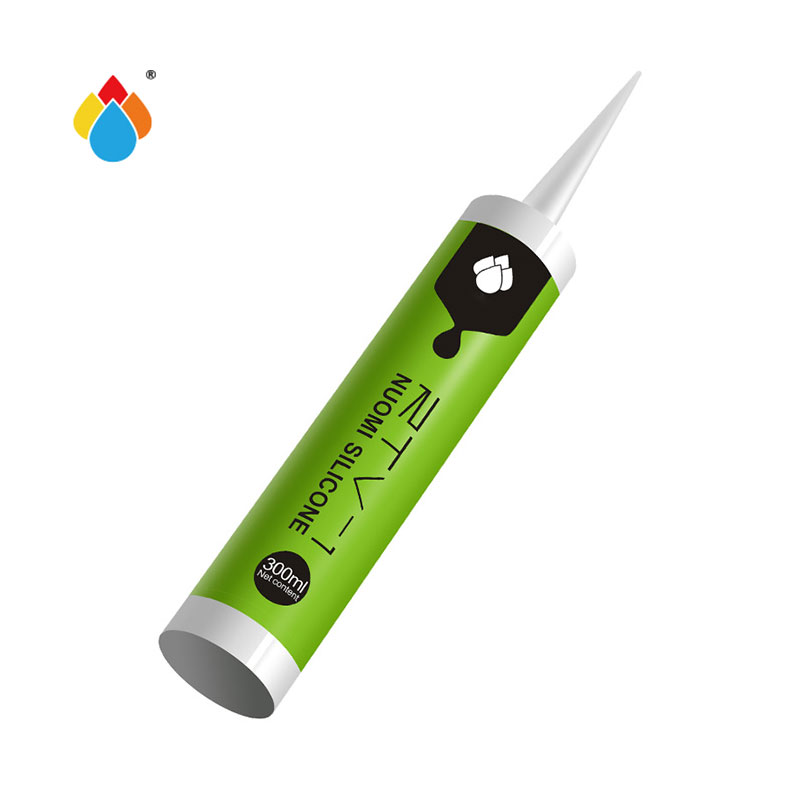

Nuomi Chemical, an integrated industrial and trade enterprise that provides wholesale RTV-1 Silicone Adhesive For Solar Photovoltaic for solar photovoltaic, has been deeply involved in the silicone industry for many years. The main product specifications of NM-509C-1 RTV-1 Silicone Adhesive For Solar Photovoltaic for solar photovoltaic are 100ML aluminum tubes and 300ML and 2600ML PE tubes. At the same time, it provides customers with professional one-component RTV silicone rubber for solar photovoltaic products. Customized services such as product packaging specifications.
NM-509C-1 RTV-1 Silicone Adhesive For Solar Photovoltaic is a translucent paste-like fluid silicone. It cures from the outside to the inside by absorbing moisture in the air. After curing, it has excellent electrical properties, high and low temperature resistance, insulation, aging resistance, weather resistance, waterproof, moisture-proof and shock-proof properties, and has good bonding and sealing properties for most metals and non-metals. NM-509C-1 RTV-1 Silicone Adhesive For Solar Photovoltaic is mainly used for bonding and sealing between solar panel cells, frames, back panels and junction boxes. It satisfy the yellowing resistance, waterproof, dustproof and weather resistance of solar photovoltaic modules in long-term outdoor environment. Good insulation, high temperature resistance and aging resistance effectively increase the service life of the equipment and avoid equipment maintenance costs caused by leakage and short circuits.
Product parameter table (tested at room temperature)：
| NO. | Test Item | Specification |
| 1 | Appearance | Translucent Paste Fluid |
| 2 | Tack-free Time | 1～30(min) |
| 3 | Hardness | 15～30(Shore A) |
| 4 | Elongation | 150～250 (%) |
| 5 | Tensile Strength | ≥0.5(MPa) |
| 6 | Adhesive Strength | ≥1.0(MPa) |
| 7 | Volume Resistivity | ≥1.0×10^14(Ω.cm) |
| 8 | Dielectric Strength | 18～25(kv/mm) |
| 9 | Dielectric Constant | 3.0(60Hz) |
| 10 | Dielectric Loss Factor | 0.003(60Hz) |
Instructions for use:
Before using NM-509C-1 RTV-1 Silicone Adhesive For Solar Photovoltaic for solar photovoltaics, please use alcohol cotton pads to clean and dry the surface to be bonded and sealed. According to the amount used, cut off the tip of the tip and squeeze directly by hand or use professional equipment to squeeze and apply glue. The thickness of the glue layer is recommended to be controlled at 2-5mm. Too thick will prolong the curing time. Please tighten the sealing cover in time after use.
Precautions:
When applying glue, please be careful to avoid contact with eyes and skin. A small number of people may be allergic to this product. It is recommended to wear gloves when using the product, use it in a well-ventilated environment, and use it on the basis of confirming safety.
Storage environment:
NM-509C-1 RTV-1 Silicone Adhesive For Solar Photovoltaic for solar photovoltaics is non-toxic and non-hazardous. Avoid rain and exposure. Store in a cool and dry place, avoid direct sunlight and severe vibration. The shelf life is 6 months.
