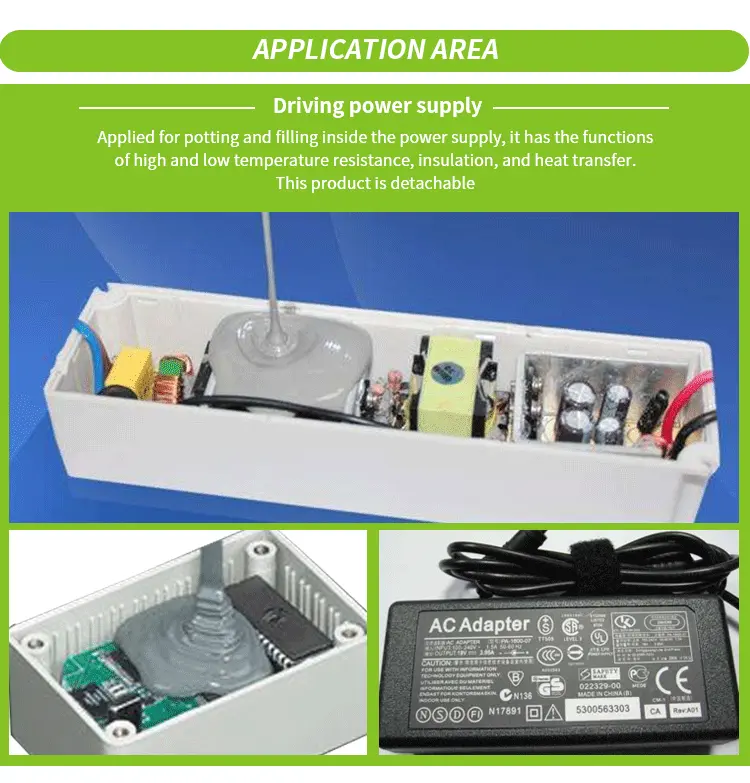

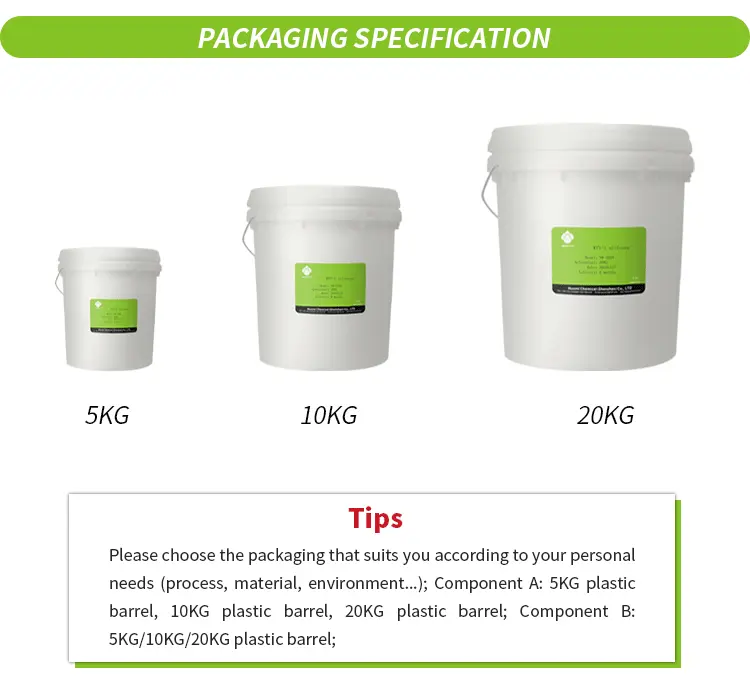

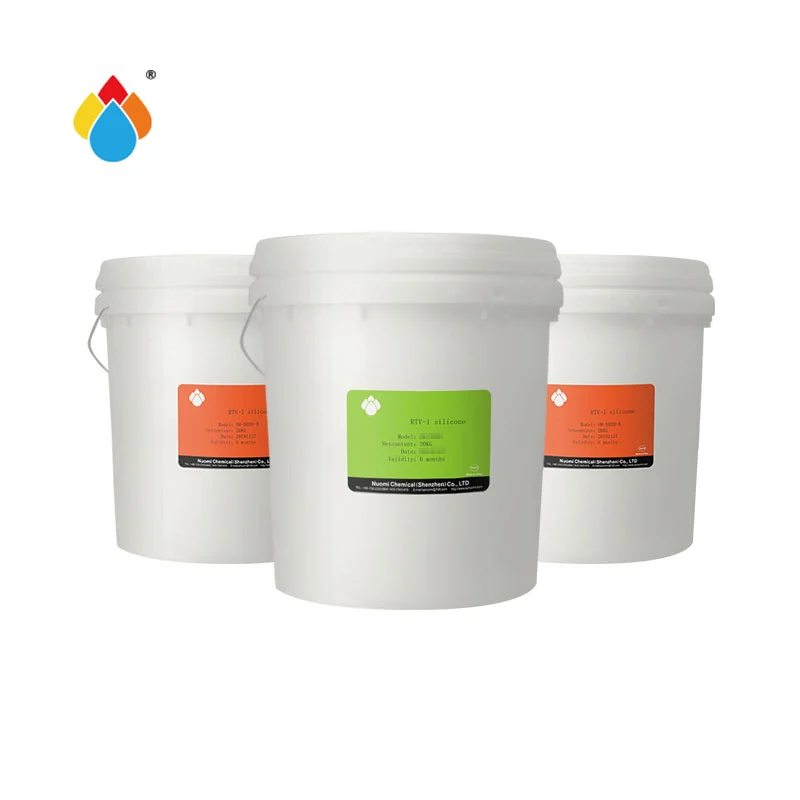

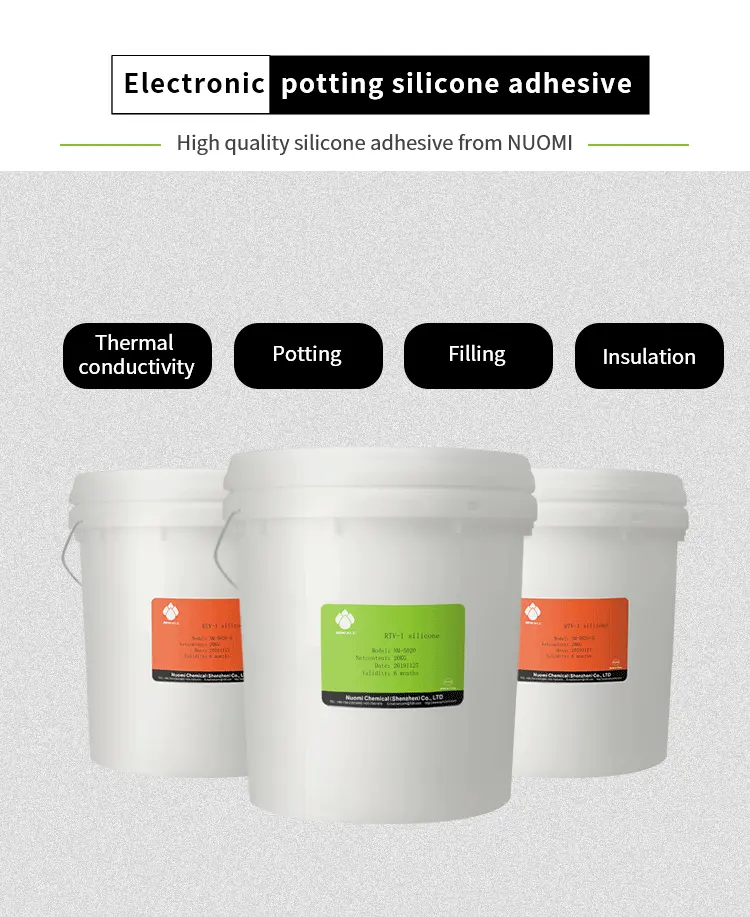

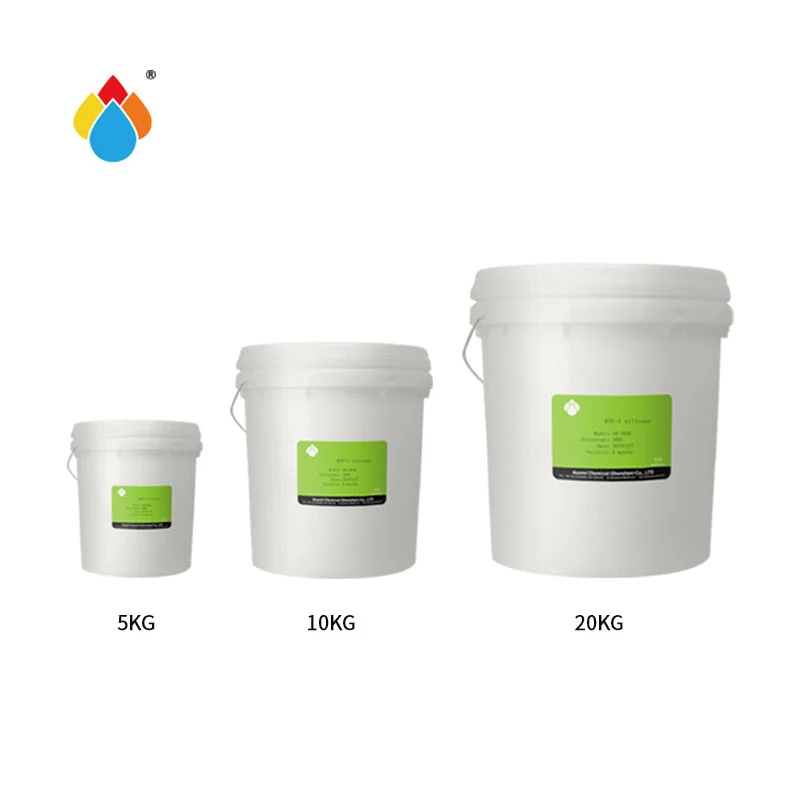

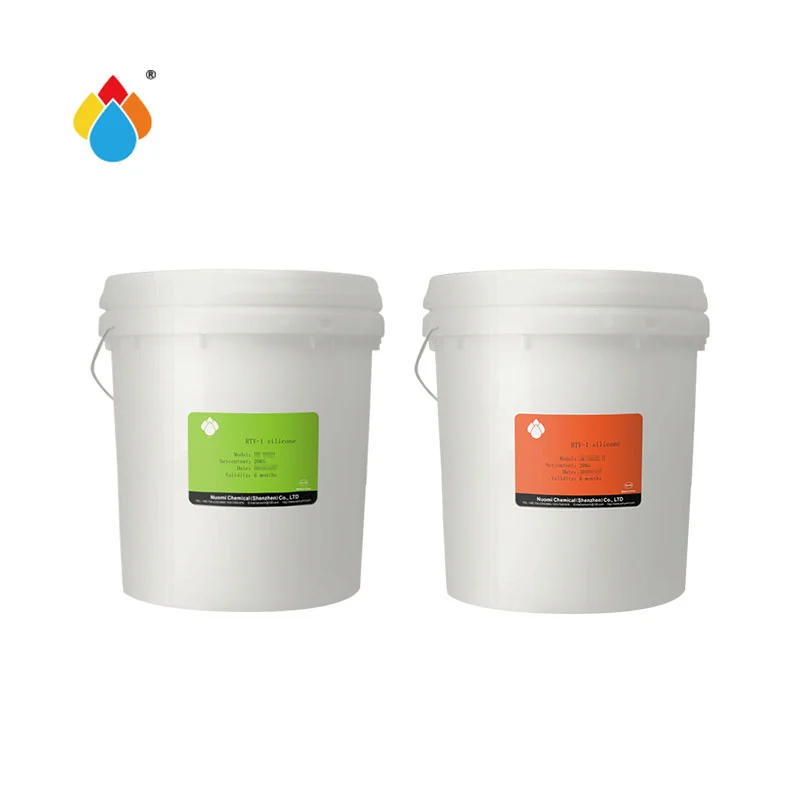

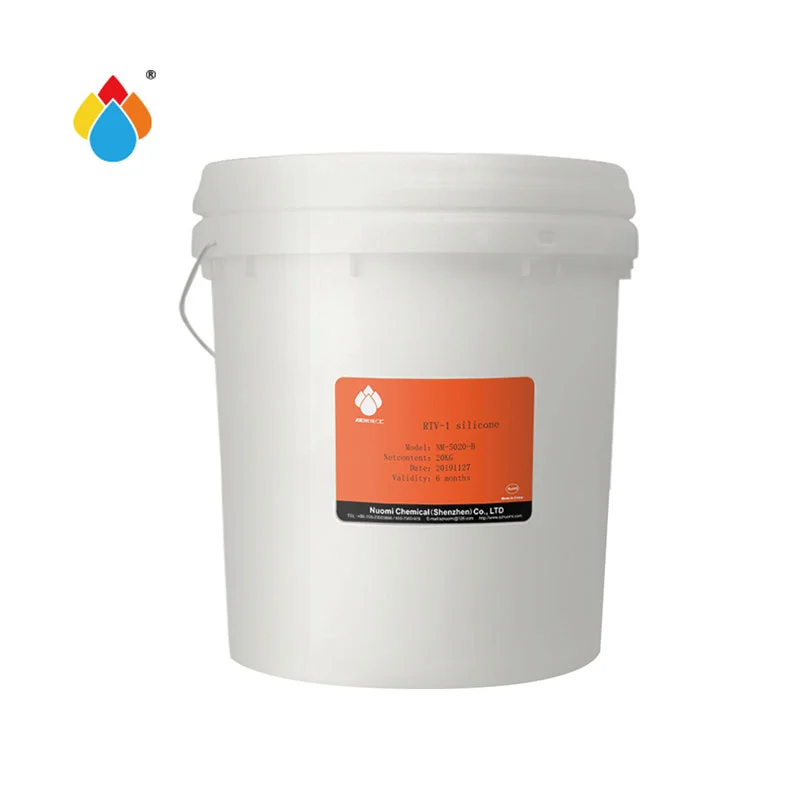

This NM-5020 Power Supply Potting Silicone Adhesive produced by Nuomi silicone Adhesive supplier is a two-component potting glue. Components A and B are used together in a ratio of 1:1 (weight ratio). This Power Supply Potting Silicone Adhesive is packaged in 10KG/barrel, 20KG/barrel, and 25KG/barrel.
1. Excellent heat dissipation performance, thermal conductivity ≤0.8W/m・k, can efficiently guide the internal heat dissipation of the power supply, greatly improve product reliability, and extend service life. 2. Possess excellent flame retardant properties. 3. Strong bonding force, excellent bonding effect for all kinds of material products. There are no bubbles inside the cured product, which can achieve the best thermal conductivity and protection effect, excellent waterproof performance, and protection level up to IP67. 4.The A and B two-component curing system is adopted to ensure that the colloid does not shrink during the curing process, and rapid deep curing can be achieved without contact with air.
Curing conditions: (25℃/50% relative humidity)
| NO. | Item | Technical parameters |
| 1 | Appearance | A: fluid B: fluid |
| 2 | Color | A: white;B: gray |
| 3 | Match proportion A:B | 1:1 |
| 4 | A component Viscosity(Viscosity Pa..S）( P ) | 2500~4500 |
| 5 | B component Viscosity (Viscosity Pa..S）( P ) | 2500~4500 |
| 6 | Blend Viscosity(Viscosity Pa..S）( P ) | 3500 |
| 7 | Table dry time（H, 25℃） | ≤1 |
| 8 | Operational time（min, 25℃） | ≤40 |
| 9 | Curing time （H, 25℃） | 3～5 |
| 10 | Curing time （H, 80℃） | < 0.5 |
After curing (4 weeks at 25°C/50% RH)
| NO. | Item | Technical parameters |
| 1 | Hardness（ShoreA） | 35～55 |
| 2 | Thermal conductivity ( w/m.k) | ≤0.8 |
| 3 | Volume resistivity (Ω.cm) | ≥1×1014 |
| 4 | Breakdown voltage（kV/mm） | ≥22 |
| 5 | Dielectric constant（1.2MHz） | 3.5 |
| 6 | Linear expansion coefficient[m(m.k)] | ≤2.2×10-4 |
Non-corrosive: After curing, the chemical properties are stable, will not corrode components, and can resist acid and alkali corrosion.
Environmental certification: Complies with the EU ROHS directive, no harmful substances are released, and harmless to the human body.
Storage requirements: It needs to be sealed and stored in a cool and dry place below 25℃. The shelf life is 6 months. After expiration, the performance needs to be tested before use.
