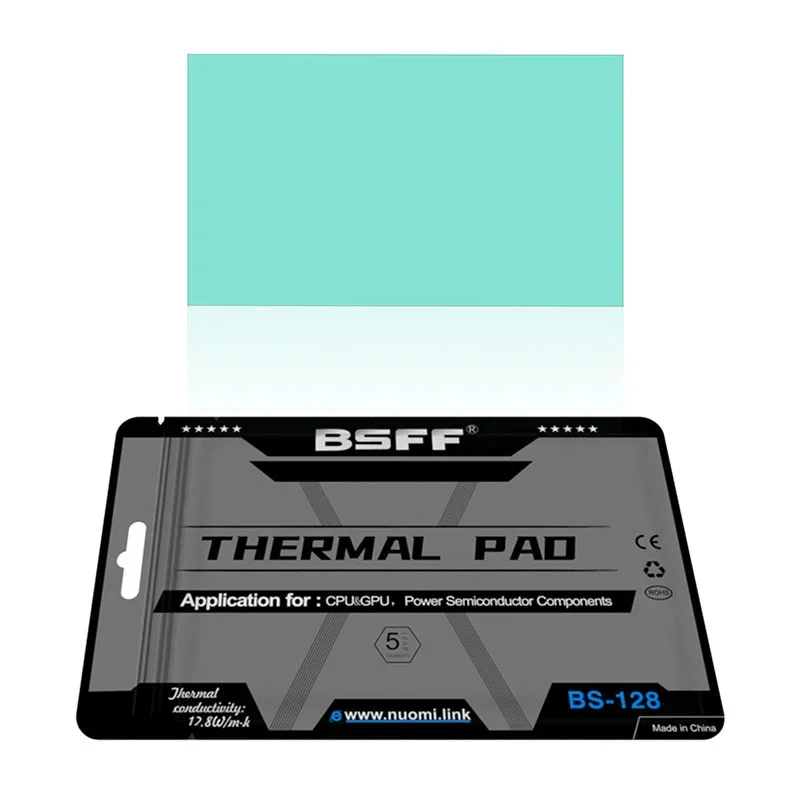

China NUOMI's BS-128 battery thermal pad is a high-performance thermal management material specially developed for power batteries, energy storage systems and consumer electronic battery packs. The battery thermal pad can efficiently balance the temperature distribution of the battery pack by innovatively optimizing the heat conduction path, significantly improve the battery cycle life and enhance safety. It is an ideal choice for thermal management of new energy vehicle batteries.
BS-128 battery thermal pad has excellent plasticity, soft material, and can be flexibly shaped and cut. It is soft and compressible, has excellent shockproof performance, and is self-adhesive, can be easily peeled off, and is easy to fix. It is easy to operate and can achieve efficient heat dissipation with one stick.

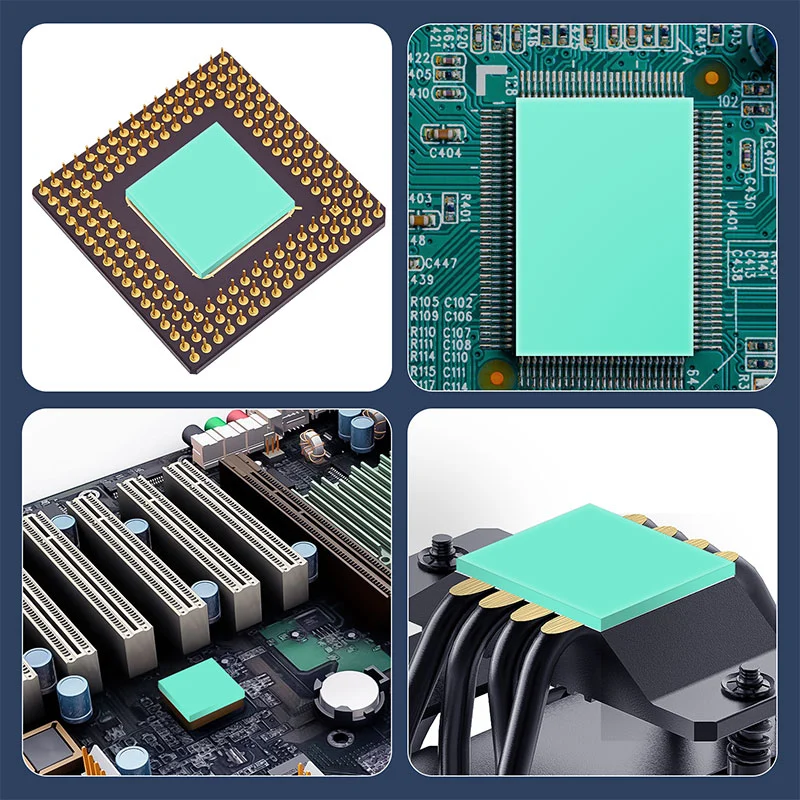

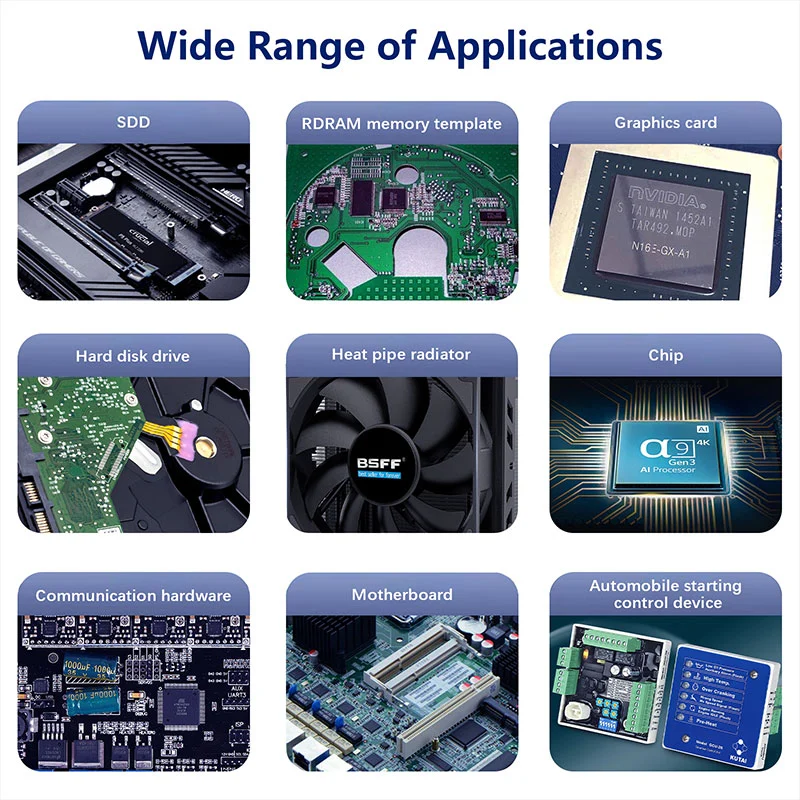

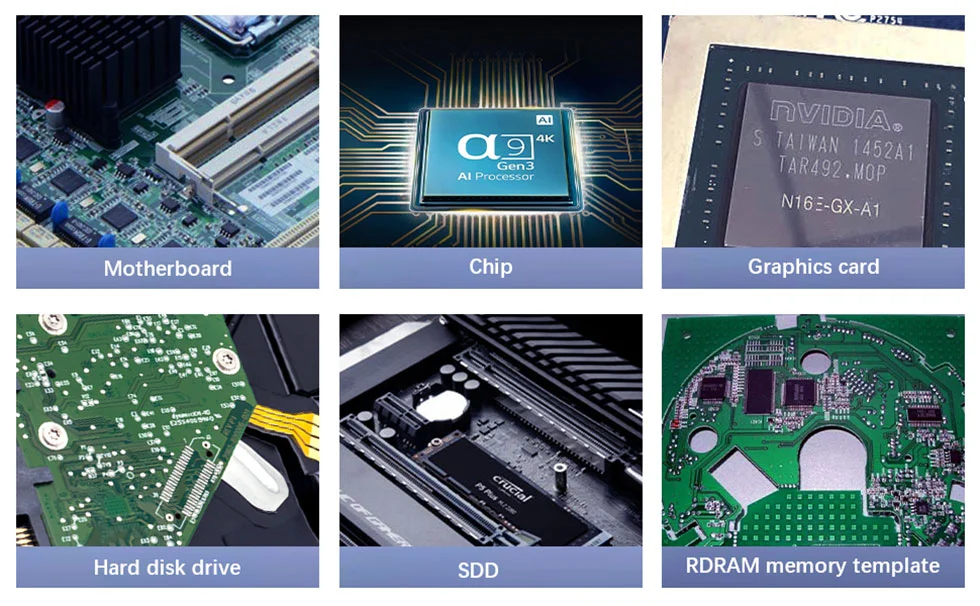

In terms of application, BS-128 battery thermal pad is extremely extensive. It can be used in power supplies, LCD/PDP TV, LED lighting, automotive electronics, optoelectronics, as well as notebooks, routers and PC motherboards in the computer industry, such as solid-state drives, video memory, memory chipsets, motherboards, graphics chips, ICs and other components.

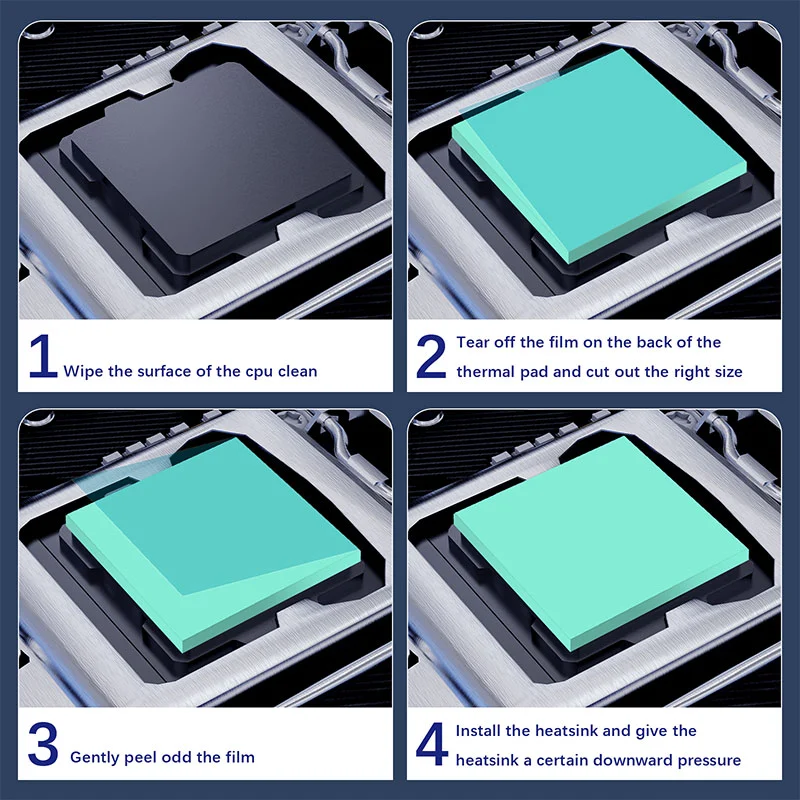

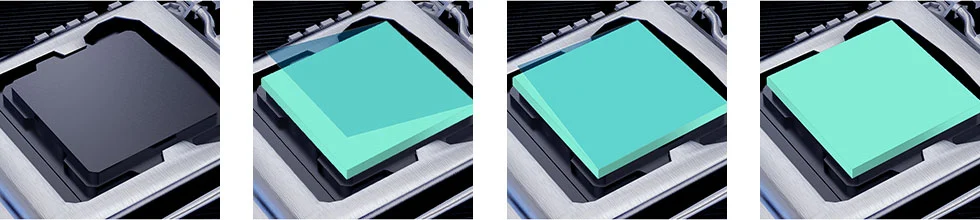

The operation process of this battery thermal pad is simple and clear, and only three steps are required: first, clean the surface, clean the surface of the object to be adhered or attached, and remove impurities such as dust and oil; then, tear off the protective film on one side first, and do not tear off both sides at the same time to avoid affecting the stickiness and thermal conductivity; finally, fix the heat sink, stick the side with the protective film torn off on the surface of the radiator, and after the installation is completed, apply a certain amount of pressure to the radiator to ensure that the thermal pad is stable, and then tear off the protective film on the other side.
Special reminder: If you plan to use it for the CPU, it is recommended to use our CPU thermal paste, which has relatively better performance (for reference only)

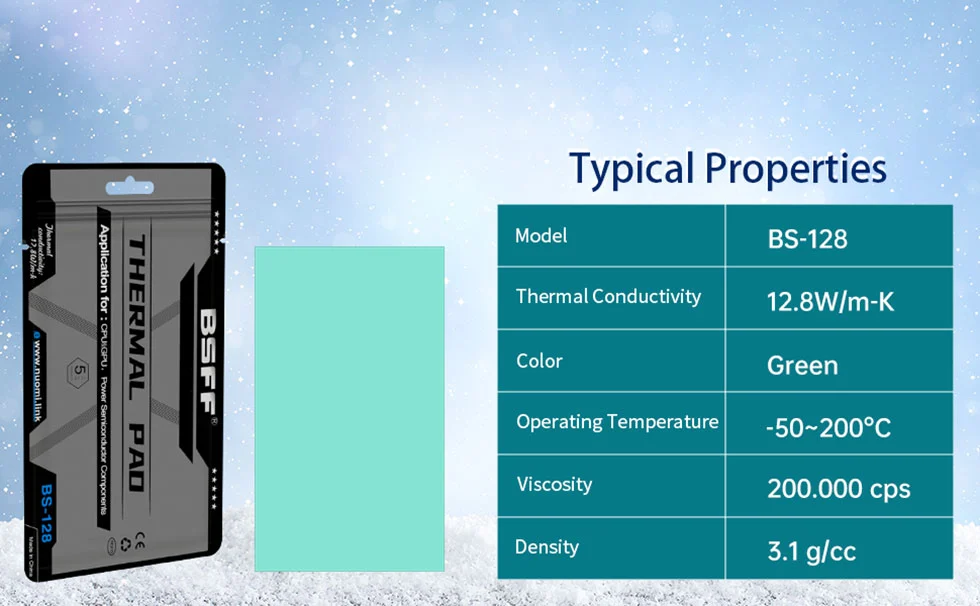

| Property | Typical Value | Test Method |
| Composition | Silicone + Ceramic | − |
| Color | Green | Visual |
| Thermal Conductivity (W/m·K) | 12.8 | ASTM D5470 |
| Density (g/cc) | 3.1 | ASTM D792 |
| Hardness（Shore 00） | 45 | ASTM D2240 |

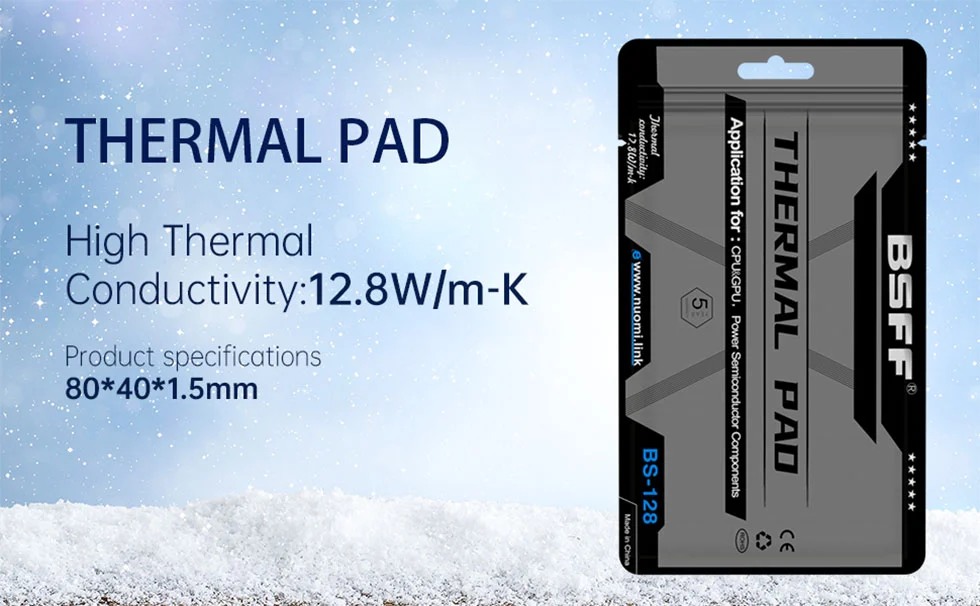

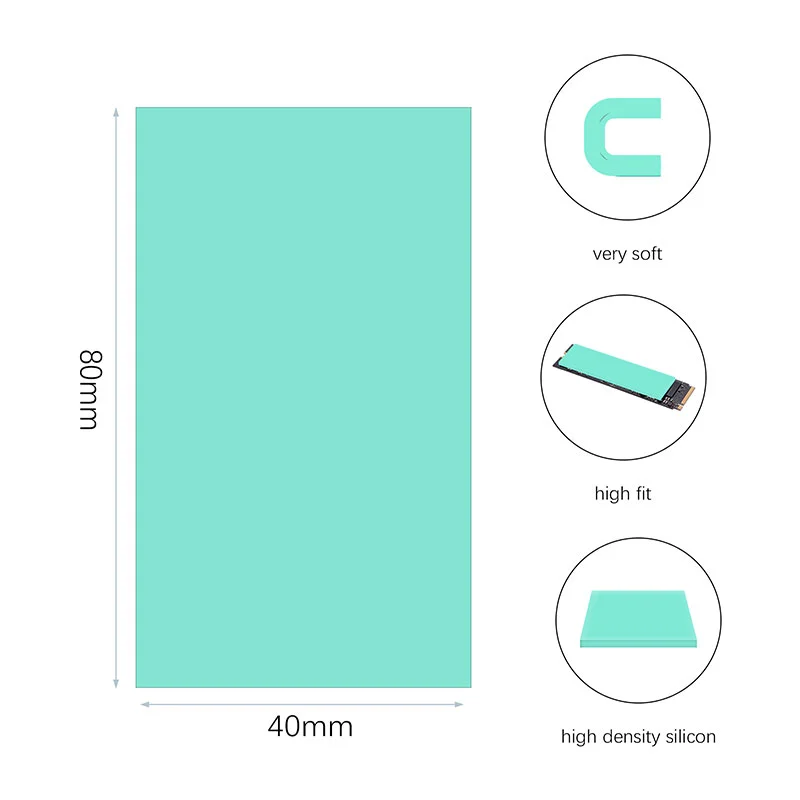

| Size（mm） | 80*40 mm | ASTM D374 |
| Thickness (mm) | 0.5/1/1.5/2/3 mm | - |
| Operating Temperature (°C) | -50 ~ 200 | − |
| Breakdown Voltage (kV/mm) | ＞10.0 | ASTM D149 |
| Dielectric Constant (1GHz) | 7.9 | ASTM D150 |
| Volume Resistivity (Ω·cm) | 1013 | ASTM D257 |
