Thermal Silicone Pad

The thermal silicone pad itself has a certain thermal conductivity, but its thermal conductivity efficiency is relatively limited. In practical applications, the thermal silicone pad usually needs to be used in conjunction with a heat sink to achieve more effective cooling. This thermal silicone pad is made of metal materials, such as aluminum, copper, etc. These metals have good thermal conductivity. After the thermal silicone pad conducts the heat of the heating element, the heat sink can quickly diffuse the heat to a larger area, increase the contact area with the surrounding air, and thus speed up the heat dissipation to the surrounding environment.

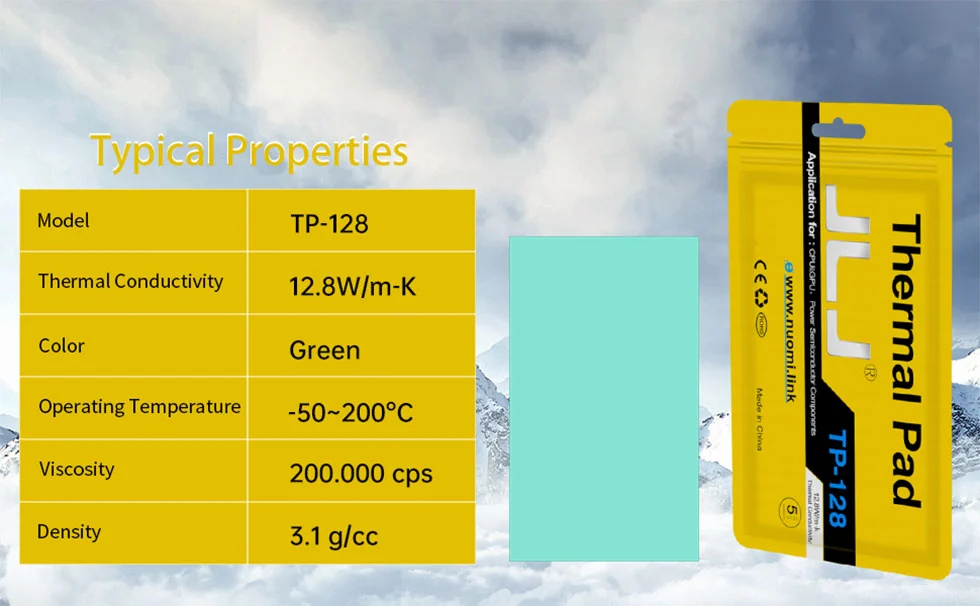

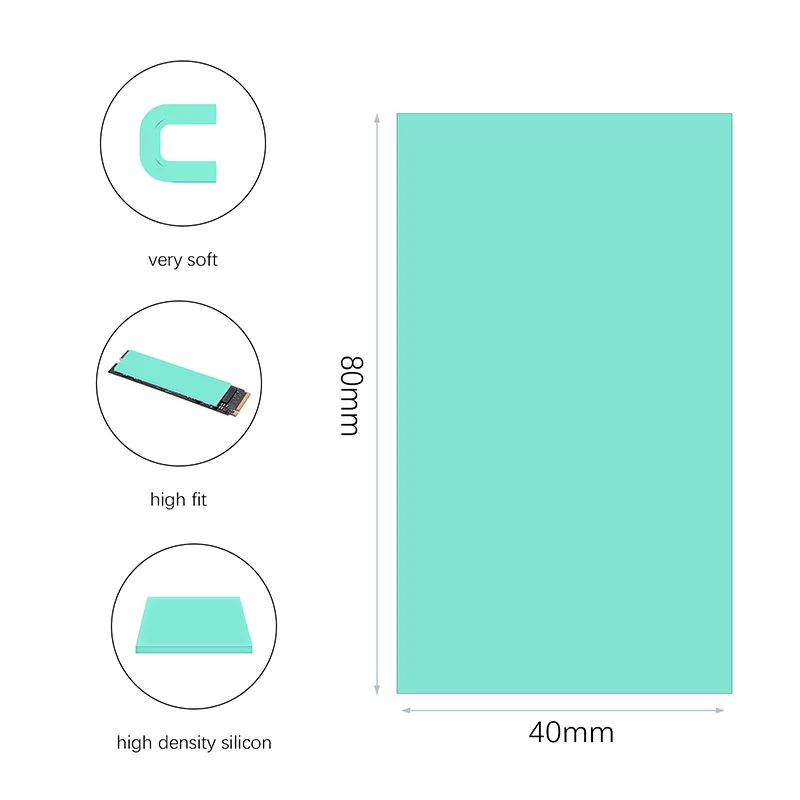

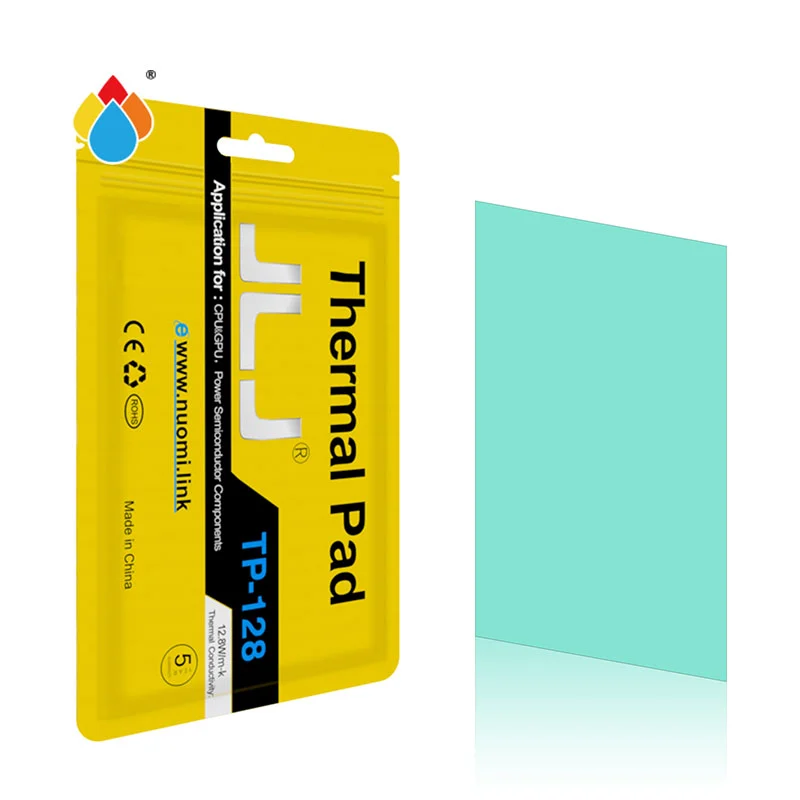

The parameters of the TP-128 thermal silicone pad are as follows:

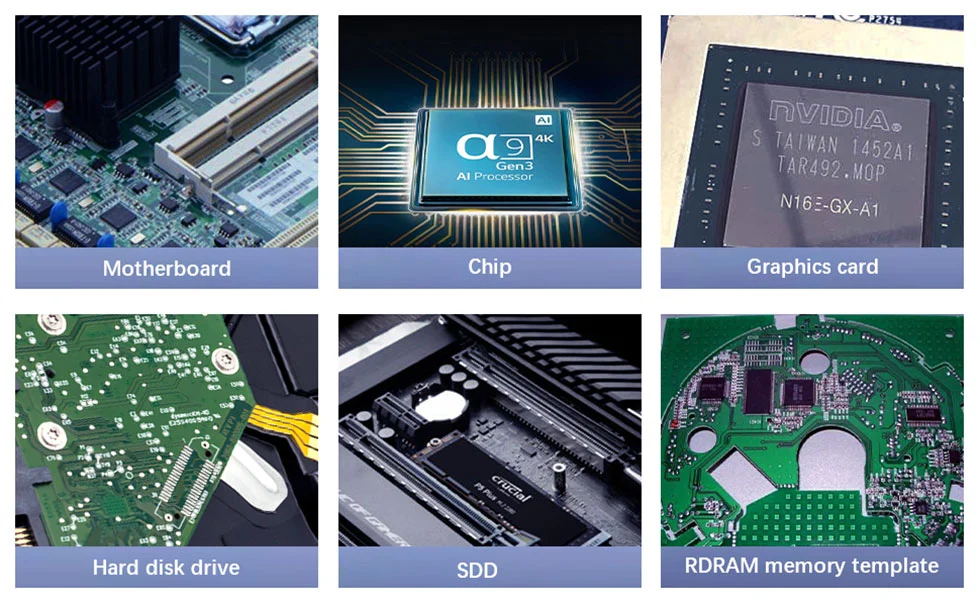

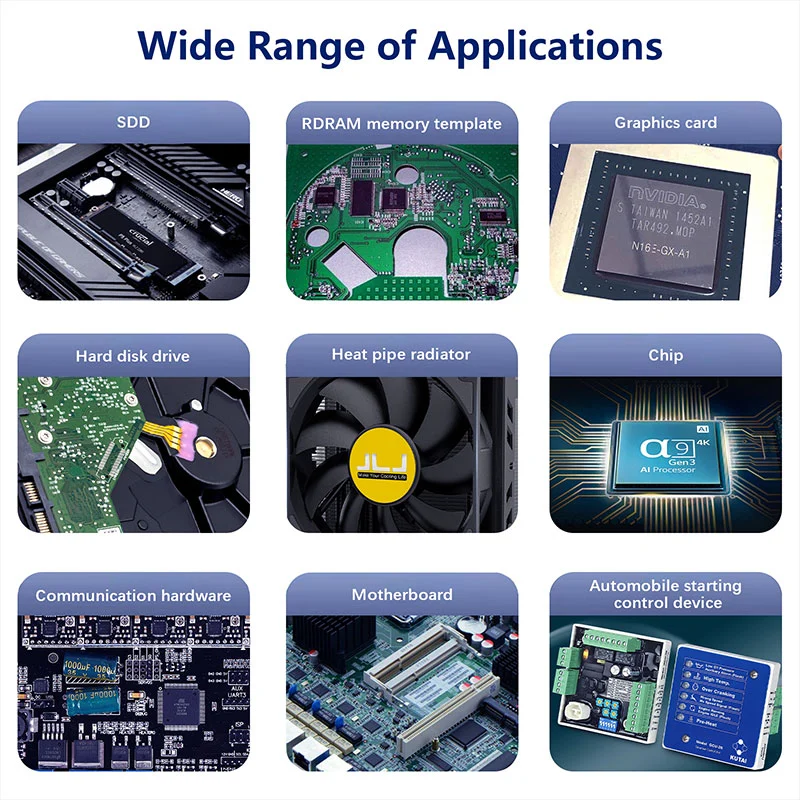

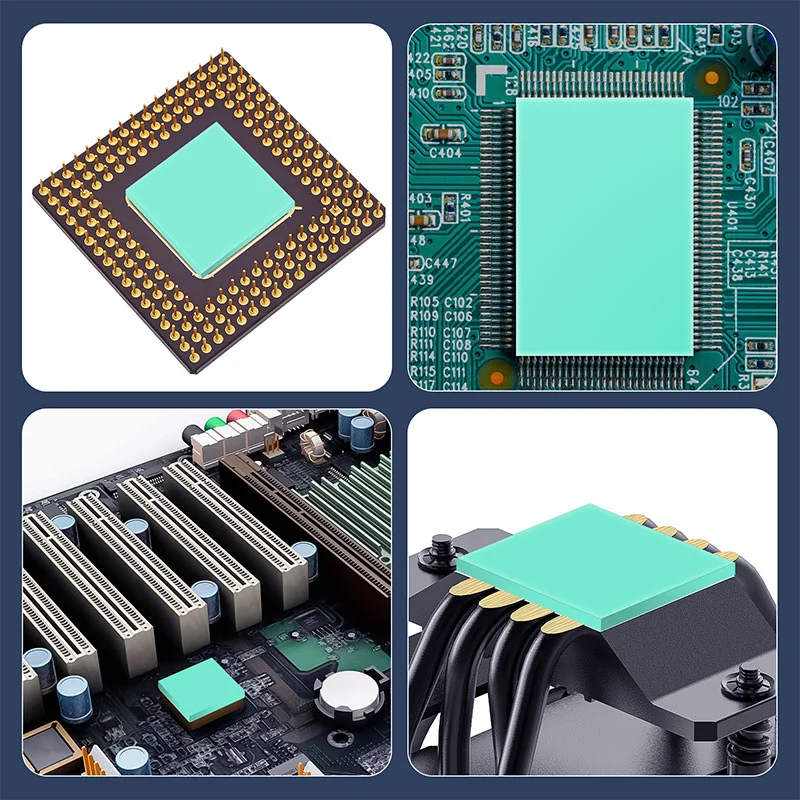

Each batch of our thermal silicone pad undergoes a 48-hour high temperature aging test, and its operating temperature range is -50~200°C. It can also be used in many products, such as laptops, servers, automotive electronics, industrial control, power modules, LED lighting, motor controllers, car chargers, 5G base stations, AI chips, etc.

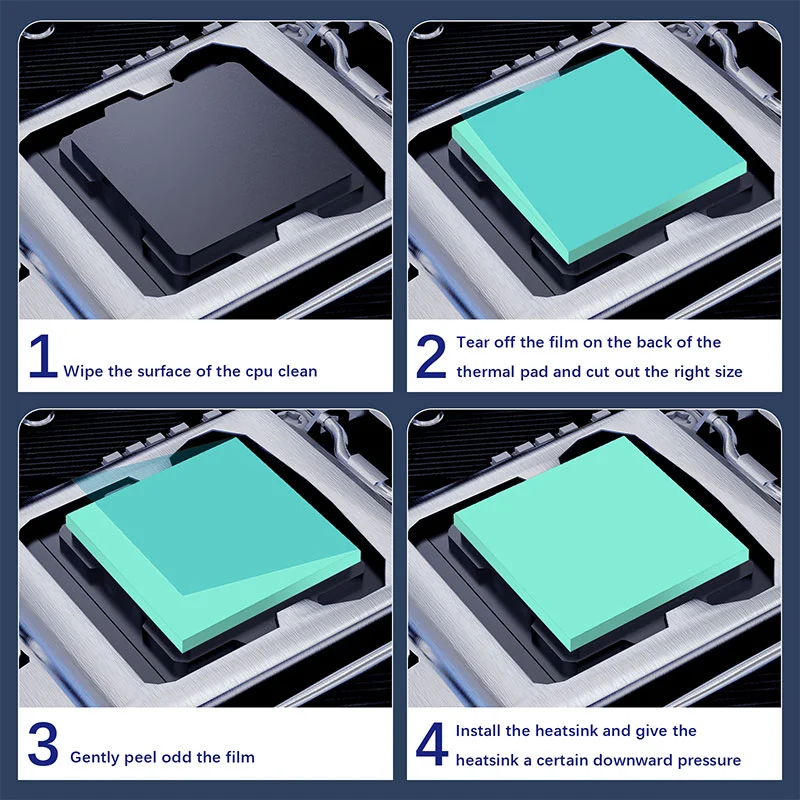

TP-128 thermal silicone pad usage precautions:

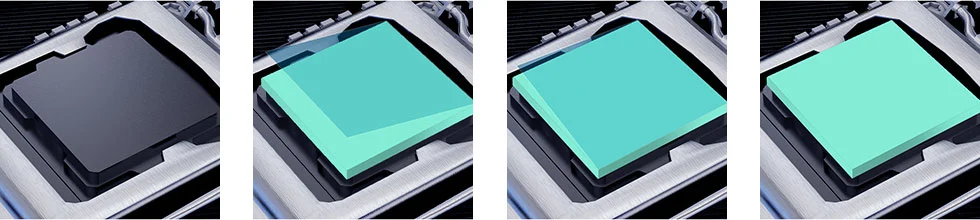

Surface cleaning: Clean the contact surface before installation to remove oil and dust.
Pressure control: Appropriate pressure can improve the contact effect, but excessive compression may damage the gasket.
Cutting tips: Use precision tools to cut into a size slightly larger than the heating element to avoid edge warping.
Storage conditions: Avoid high temperature, humidity and direct ultraviolet rays to prevent premature aging.
