In the high-stakes world of modern electronics, from the smartphone in your pocket to the server powering your business, heat is the silent enemy. Performance throttling, system instability, and premature failure are all consequences of inadequate thermal management. So, how do you ensure your delicate components stay cool under pressure? The answer often lies in a deceptively simple material: the Thermal Conductive Silicone Pad.
As a thermal management specialist with over two decades of experience, I've seen firsthand how the correct application of this material can revolutionize product design and longevity. It's not just a component; it's your first line of defense against thermal degradation.

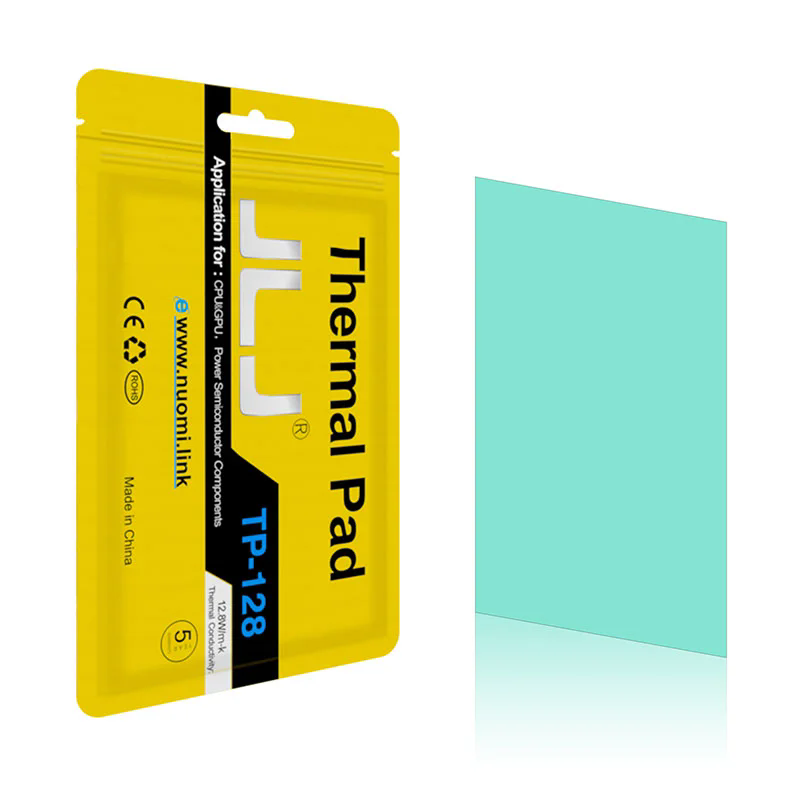

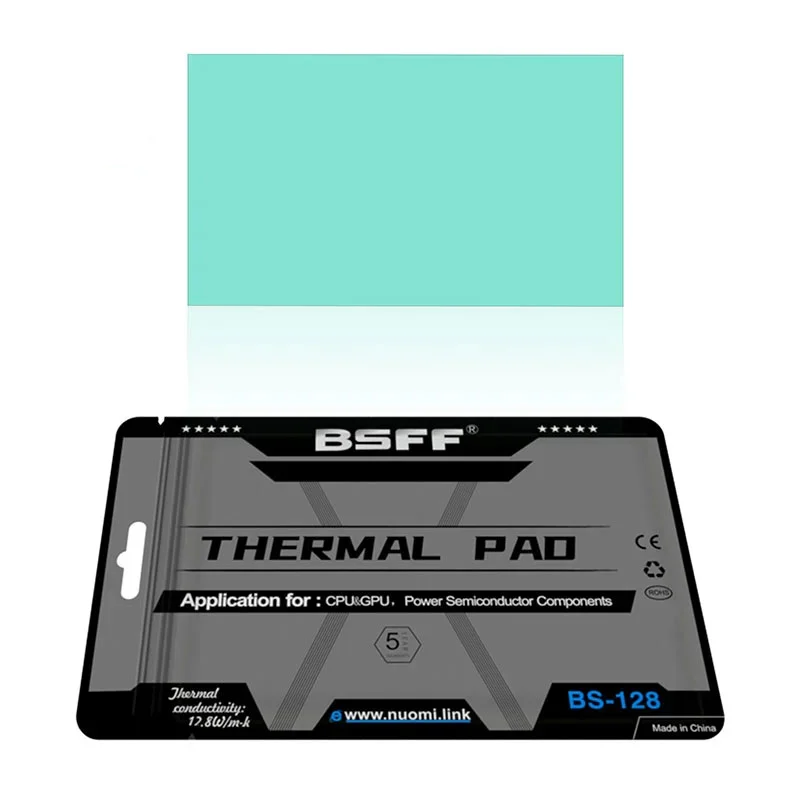

A Thermal Conductive Silicone Pad is a soft, compliant, and highly versatile thermal interface material (TIM). It is designed to bridge the microscopic air gaps between a heat-generating component (like a CPU, GPU, or power transistor) and a heat sink or cooling solution. Since air is a poor conductor of heat, these gaps create significant thermal resistance. The silicone pad fills these voids, efficiently transferring heat away from the component, thus ensuring optimal operating temperatures and enhancing device reliability.
Superior Gap-Filling Capability: Unlike thermal pastes, pads can easily fill large and uneven gaps, compensating for tolerance variations in assembly.
Electrical Insulation: They provide excellent electrical isolation, preventing short circuits while managing heat—a critical dual function.
Exceptional Resilience & Reusability: These pads offer outstanding compression set resistance, meaning they maintain their shape and performance over time, even after multiple thermal cycles. Many can be reused during prototyping or repairs.
Ease of Application & Rework: They are clean and simple to apply, eliminating the mess associated with liquid adhesives or thermal greases. This speeds up production and simplifies maintenance.
Durability: Resistant to weathering, ozone, and many chemicals, ensuring long-term stability and performance.
Selecting the right Thermal Conductive Silicone Pad is paramount. Here are the key parameters you must consider, presented with the clarity a professional demands.
Key Parameter List:
Thermal Conductivity: Measured in W/m·K (Watts per meter-Kelvin). This is the most critical property, indicating the material's inherent ability to conduct heat. Higher values are better for more demanding applications.
Hardness (or Softness): Measured on the Shore 00 scale. A lower value indicates a softer pad, which conforms more easily to surface irregularities for better interface contact.
Thickness: The available range of thicknesses, crucial for filling the specific gap in your assembly.
Breakdown Voltage: The electrical voltage at which the material fails as an insulator. A higher value signifies better dielectric strength.
Volume Resistivity: A measure of the material's electrical insulating capability.
Operating Temperature Range: The span of temperatures within which the pad will perform reliably without degrading.
To give you a clear, at-a-glance comparison, here is a simple table outlining some of our standard product grades at Nuomi Chemical:
| Product Grade | Thermal Conductivity (W/m·K) | Hardness (Shore 00) | Thickness Range (mm) | Key Application Focus |
|---|---|---|---|---|
| NM-TG300 | 3.0 | 50 | 0.5 - 5.0 | High-performance computing, GPUs |
| NM-TG500 | 5.0 | 60 | 0.5 - 10.0 | Power electronics, LED lighting |
| NM-TG800 | 8.0 | 70 | 0.5 - 3.0 | Servers, telecom infrastructure |
| NM-TG12 | 12.0 | 80 | 0.5 - 2.0 | Automotive, high-power IGBTs |
This table is a starting point. At Nuomi Chemical, we specialize in developing custom formulations to meet the most stringent and unique thermal challenges.
Q: How do I determine the correct thickness for my application?
A: The correct thickness is determined by the gap you need to fill between the heat source and the heat sink. It's generally recommended to choose a pad thickness that is slightly greater (e.g., 0.5mm more) than the measured gap. This ensures that when the assembly is fastened, the pad compresses slightly, creating intimate contact on both surfaces without being overly compressed, which could damage components or reduce the pad's effectiveness. Always account for manufacturing tolerances in your design.
Q: Can a Thermal Conductive Silicone Pad be cut to a custom shape?
A: Absolutely. One of the significant advantages of Thermal Conductive Silicone Pads is their ease of customization. They can be precisely die-cut into virtually any shape or size to match your component's footprint. This allows for targeted cooling and prevents material overhang that could interfere with other components. For prototyping, they can even be cleanly cut by hand with a sharp blade or scalpel.
Q: What is the difference between a silicone-based pad and a graphite sheet?
A: While both are used for thermal management, they have distinct characteristics. Thermal Conductive Silicone Pads are typically electrically insulating, softer, and excellent at filling three-dimensional gaps. They provide both thermal transfer and mechanical cushioning. Graphite sheets, on the other hand, are often highly conductive in the planar direction (X-Y axis) but can be less effective through their thickness (Z-axis). They are also electrically conductive, which can be a drawback in applications requiring isolation. The choice depends entirely on your specific thermal, electrical, and mechanical requirements.
Simply having a high-quality pad isn't enough; correct application is key.
Surface Preparation: Ensure both the component and heat sink surfaces are clean, dry, and free of oil, dust, or old thermal material residue.
Careful Handling: Remove the protective liners (if present) and handle the pad by its edges to avoid contamination.
Precise Placement: Align the pad carefully over the component. Once placed, try not to reposition it, as this can trap air bubbles.
Secure Assembly: Fasten the heat sink evenly, applying consistent pressure according to the recommended compression force for the pad. This ensures a uniform interface and optimal thermal transfer.
For over two decades, the team at Nuomi Chemical (Shenzhen) Co., Ltd. has been at the forefront of material science, engineering cutting-edge thermal solutions for a global clientele. We understand that your thermal challenge is unique. That's why we don't just sell products; we provide partnerships.
Our expertise allows us to offer not only a comprehensive range of standard Thermal Conductive Silicone Pads but also to collaborate with you on custom formulations. Whether you need a specific balance of softness and conductivity, a unique color, or a custom die-cut shape, we have the technical capability to deliver.
Don't let thermal challenges limit your innovation. Let us help you build cooler, more reliable, and more efficient electronics.
Contact us today at Nuomi Chemical (Shenzhen) Co., Ltd. to discuss your project requirements and request free samples. Let's engineer your thermal success, together.
